Model: #GB5-200

Temperature: -40°C to 150°C (-40°F to 300°F)

Model: #GB5-250

Diameter: 12.7 mm (0.5 in) & 25.4 mm (1 in)

Temperature: Ambient to 1000°C (1832°F)

Specimen Width: 12.7 mm (0.5 in) & 25.4 mm (1 in)

Features & Benefits

• High temperature fracture mechanics clevis grips designed for use inside elevated temperature furnaces
• Static and fatigue crack growth tests using compact tension specimens per ASTM standards
• Test capabilities include fatigue crack growth tests and fracture toughness tests such as KIc, JIc and CTOD. Includes grip, two pins and two spring retainers.

Model: #GB5-300

Force: 25 kN (5,500 lbf) to 100 kN (22,500 lbf)
Grip Capacity increases to 150% when used in static testing appliations

Specimen Geometry: Round & flat
‍
Thickness/Diameter: Flat and Round samples 12 mm (0.47 in) to 20 mm (0.8 in)

Features & Benefits

• Static and fatigue testing
• Jaws move relative to centerline, ensuring specimen alignment
• Interchangeable jaws for round and flat sample sizes
• Side opening for quick and easy sample insertion
• Tension testing

Model: #GB5-400

Force: Six models rated from 25 kN (5,500 lbf) to 1,000 kN (225,000 lbf)

Thickness/Diameter: Flat and Round samples to 27 mm (1.1 in) thick

Sample Width: Models range from 25 mm (1 in) wide to 75 mm (3 in)

Features & Benefits

• Tension and Compression; Static and Fatigue
• For static and fatigue testing of metals, composites and other materials that require relatively high test forces.
• Commonly used with static electro-mechanical test machines and also servo hydraulic test machines where high pressure hydraulic fluid is used.
• Optional grip hydraulic power pack is available (reference model GHPP) with pressure ratings to 10,000 psi (700 bar)
• Features a side opening designed for simple and quick specimen insertion

Model: #GB5-600

Force: Three models including 50 kN (11,240 lbf), 100 kN (22,500 lbf) & 300 kN (67,400 lbf)

Temperature: Up to 900 C (1,650 F)
Higher temperature version available (GB5-700)

Features & Benefits

• Low cycle fatigue testing or strain controlled testing
• Tests in accordance with ASTM E606
• Holds high sample alignment
• Grips include self  aligning and self locking spherical seats at both ends
• Tests in high temperatures up to 1,000°C (1,832°F)

Model: #GB5-700

Force: Up to 250 kN (55,000 lbf)

Temperature: Ambient to 900°C (1,650°F)

Features & Benefits

• Satisfies ASTM E606 requirements
• Hydraulic wedge-lock of grip to machines
• Eliminates wedge (spiral) washers
• For tension and compression tests
• Hydraulic pressure locks specimen in grip
• Quick-connect, self-sealing hydraulic hose connection No wrenches needed to mount / dismount grips or specimens
• Independent hand pump optional
• Adjustable grip pressure
• Electrically operated valves

Model: #GB5-800

Force: Several models available at ratings to 100 kN (22 kip) and 2 kN-m (17,500 in-lbf)

Features & Benefits

• Axial torsion, tension and compression test capabilities for fatigue and static tests
• Jaws move relative to sample centerline, ensuring specimen alignment
• Side opening saves time with quick and easy sample insertion
• Requires hydraulic power source
• Ideal for testing advanced composites, metals, metal substitutes and more

Model: #GB5-900

Force: Two models - rated 25 kN (5,500 lbf) & 50 kN (11,250 lbf)

Features & Benefits

• Static and fatigue testing for metal samples for load and strain controlled applications
• Precision alignment for tension & compression tests
• Tests in accordance with ASTM E606
• Used with electrodynamic and servo hydraulic test machines
• Available in high temperature version

Model: #GF1717

GF1717 test fixtures hold the UHMWPE blocks square at the ASTM recommended spacing during assembly and screw tightening modes on bio-lateral lumbar constructs. This feature has proven to be helpful in maintaining consistent test results during ASTM F1717 testing applications.

Model: #GF2077

ASTM F2077 includes three different test methods including compression, compression-shear and torsion. All three types of fixtures are available.

Procedure A of ASTM D7774

‍For Procedure A requires a three point bending fixture. A specimen of rectangular cross section is braced by two double-sided supports and is loaded by means of a double-sided loading nose midway between the supports. A support span-to-depth ratio of 16:1 is used.

The specimen is cyclically loaded equally in the positive and negative directions to a specific stress or strain level at a uniform frequency until the specimen ruptures or yields.

Procedure B of ASTM D7774

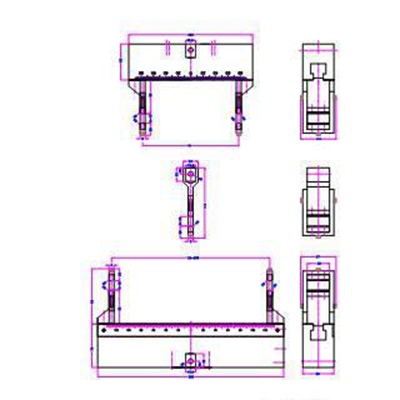

‍For Procedure B a 4 point bend fixture is required. A specimen of rectangular cross section is braced by two double-sided supports and is loaded by means of two double-sided loading noses, each an equal distance from the adjacent support. Load span-to-support span ratios can be 1:2 or 1:3.

The specimen is cyclically loaded equally in the positive and negative directions to a specific stress or strain level at a uniform frequency until the specimen ruptures or yields.
