Material Testing
100 Series Universal Test Machines are modular, low force, tabletop systems ideal for tension and compression tests at loads up to 9 kN (2000 lbf). This series includes five load frames, four load capacities, controller software and load cells to your test requirements. The 100 Series is popular because of the number of configurations available for a wide range of test scenarios.
Top Features for the 100 Series
- Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests
- Choose controller software, load frame type, and actuator stroke/force/speed
- Adjustable Test Space
- Load accuracy 0.5% of indicated load
- Up to 5,000 Hz data acquisition rate
- Automatic transducer recognition
- Digital position encoder with sub-micron resolution
- Constant speed, constant load rate, position and load control
- 12 month warranty
- Meets or exceeds national and international accuracy standards for materials testing systems
Compare the 100 Series by Application
100 Series Models
200 Series Single Column Test Machines are ideal for tension and compression applications where test force requirements are up to 5 kN (1,125 lbf) with speeds available to 2,500 mm/min. 200 Series load frames serve situations where table space is limited.
This series is recommended for high travel or high extension test applications such as rubber tensile testing and tensile testing of medical devices such as catheters.
Top Features for the 200 Series
- Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests
- Choose controller software, load frame type, actuator stroke/force/speed
- Speeds up to 2540 mm/min (100 in/min)
- Up to 1400 mm (55 in) travel
- Load accuracy 0.5% of indicated load
- Up to 5,000 Hz data acquisition rate
- Automatic transducer recognition
- Digital position encoder with sub-micron resolution
- Constant speed, constant load rate, position and load control
- 12 month warranty
- Meets or exceeds national and international accuracy standards for materials testing systems
Compare the 200 Series by Application
200 Series Models
300 Series Dual Column Electromechanical Universal Test Machines are the best choice for performing static tension and/or compression applications that require higher forces, higher speeds or increased test space than the 100 or 200 Series can offer. Models are available with load capacities between 5 kN and 500 kN (1,125 lbf and 110 kip).
These dual column test machines perform the full gamut of mechanical including Tensile, Compressive, Bend, Bond, Flexural, Fracture, Peel, Shear, Tear, Stress Relaxation, and Short term Creep tests. Each system is configured to your application needs.

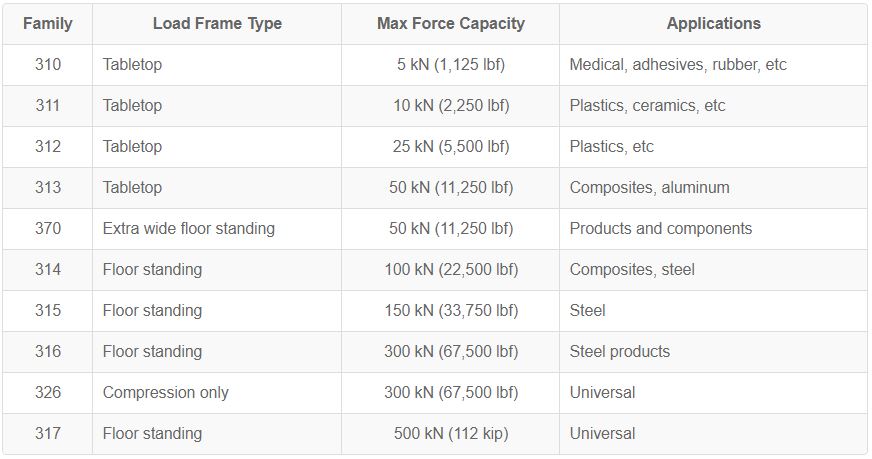

300 Series Models & Application
Top Features for the 300 Series
- Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests
- Choose controller software, load frame type, actuator stroke/force/speed
- Adjustable Test Space
- 100:1 Force range (i.e. use the load cell to 1% of capacity with no loss in accuracy)
- Load accuracy 0.5% of indicated load
- Up to 5,000 Hz data acquisition rate
- Automatic transducer recognition
- Digital position encoder with sub-micron resolution
- Constant speed, constant load rate, position and load control
- 12 month warranty
- Meets or exceeds national and international accuracy standards for materials testing systems
Click here to go back to Universal Testing Machine selectionThe 600 Series Servohydraulic Test Machines are affordable solutions to the needs for tensile, compression, flexural bend and shear testing applications. With a large dual test space, this machine provides enough test space to test with large fixtures safely and efficiently. These high capacity test machines provide force capacities between 300 kN and 2 MN (67,500 lbf and 450 kip).
These test machines are configured with an open-front hydraulic wedge action grip design to improve operator safety and throughput, and features a number of jaw faces to cover a large range of specimen sizes.

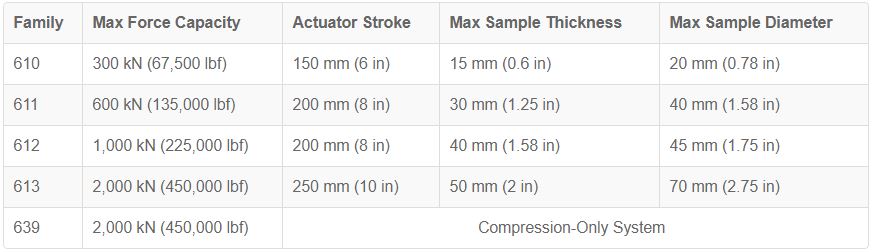

600 Series Models & Application
Top Features for the 600 Series
- Dual test space design makes changing between tension and compression test setups safer and more efficient – eliminates need to remove heavy fixtures
- Hydraulic wedge action tensile grips integrated into load frame crosshead with jaws
- Open front grip approach improves operator safety and throughput, and allows a small selection of grip jaws designed to cover a wide range of sample sizes
- 100:1 Force range (i.e. use the load cell to 1% of capacity with no loss in accuracy)
- Load accuracy 1% of indicated load
- 1,000 Hz data acquisition rate
- Digital position encoder
- Constant speed, constant load rate, position and load control
- 12 month warranty
- Meets or exceeds national and international accuracy standards for materials testing systems
Click here to go back to Universal Testing Machine selection.png)
